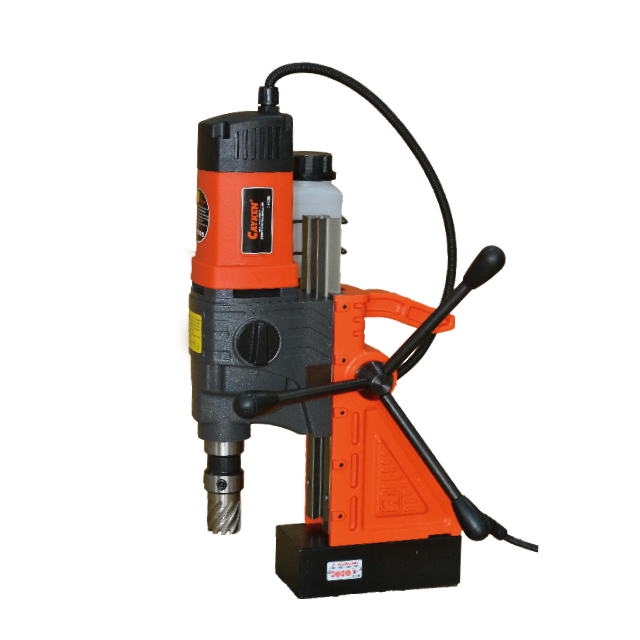

Magnetic Core Drill

hosts gear box fixed,high accuracy
all die-cast magnesium alloy frame light weight
built-in cooling system,small size

TECHNICAL PARAMETER

	Core drill dia(mm)	Twist drill dia(mm)	Rated Voltage(v)	Rated Frequency(Hz)	Rated Input Power(w)	No-load Speed(rpm)	Max attraction(N)	Cutting depth(mm)	Stroke(mm)	Net/Gross Weight(kgs)	Packing Size(cm)
SCY-35WO	35	/	110/220~	50-60	1600	810	16000	35	210	10.7/17	581837
SCY-50WO	50	/	110/220~	50-60	1650	790	16200	40	220	10.7/17.3	581837
SCY-50/2WO	50	16	110/220~	50-60	1700	280/510	16500	45	230	11.6/17.8	581837
